STINGER 30 TWIN

STINGER 30 TWIN

$524.95 CAD
$524.95 CAD
Sale Sold out
Shipping calculated at checkout.

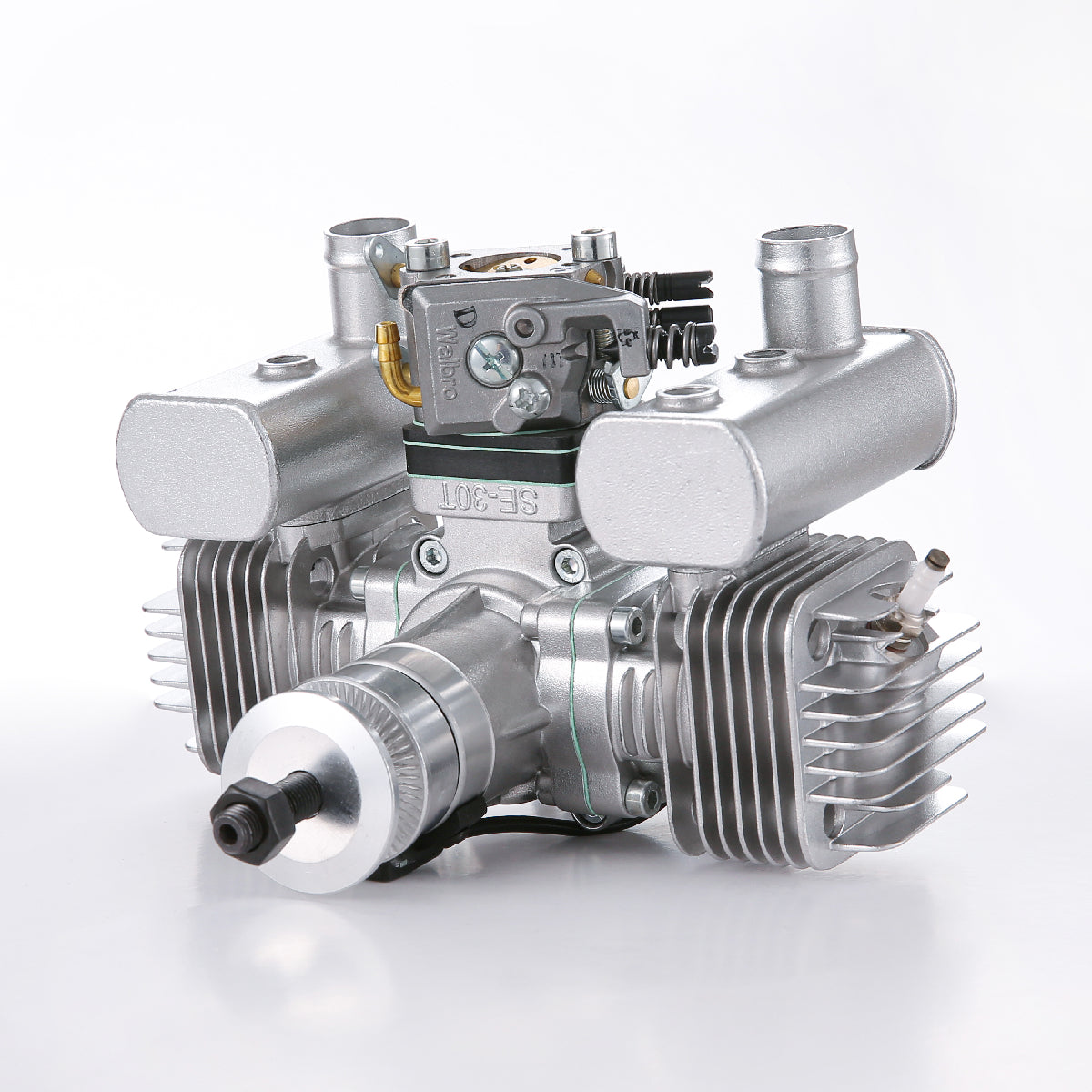

RCGF Stinger 30cc TWIN
Smooth operation — Smaller size
RCGF high end Stinger 30cc twin cylinder engines are ready, you can get more smooth fly experience. It is small, powerful and easy starting,It is your very good choice for small size twin cylinder engine

 Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 30cc (1.83 cu in)
Bore x Stroke (mm) 1.26 in(32mm) x 0.77 in (19.6mm)
Recommended props 18×8, 18×10, 19×8 & 20×8
Maximum Output 3.7HP /7500rmp
Power supply 7.4V-14V
  1. Carburetor : Walbro
  2. Ignition : Stinger DC-CDI (Computer Controlled auto advance, electronic ignition system)
  3. SPARK PLUG: M8(1/4-32)
  4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  5. speed rang : 1500-8500rpm
  6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
  7. Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
  8. Break in Propeller : 18X8 (Standard Two leafs prop)
  9. Cooling System : Air Cooled

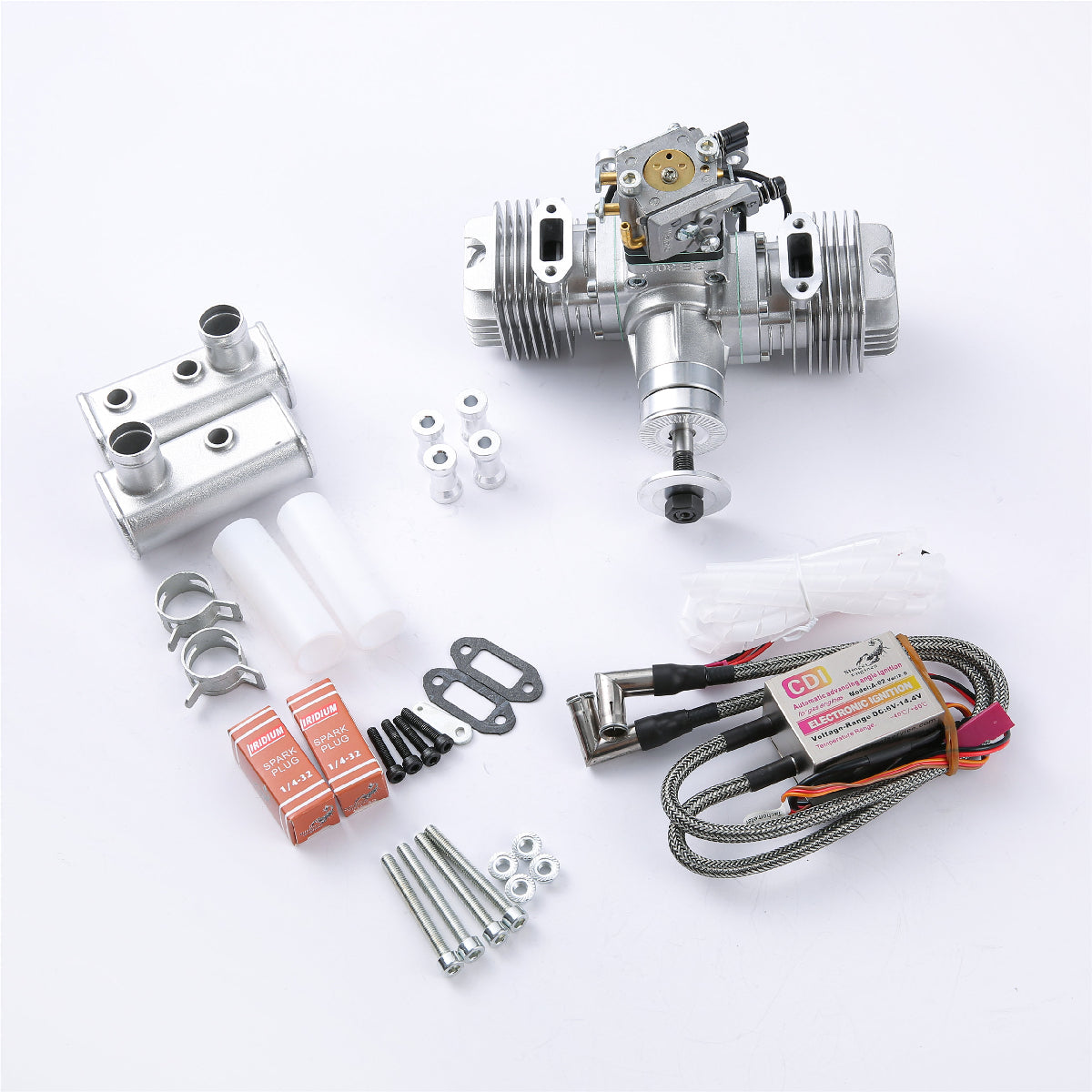

  10. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
  1. Engine: 2.03 lb (923g)
  2. 2XMuffler: 2.71 oz (77 g)
  3. Ignition Module: 5.1 oz (145 g)
  4. Total: Weight: 2.53 lb (1145 g)
Technical Data:
  1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
  2. Gasoline/Oil Mix: 30:1
  3. Replacement Spark Plug: M8 1/4-32 or equivalent
  4. Idle Speed: 1600 rpm/min
