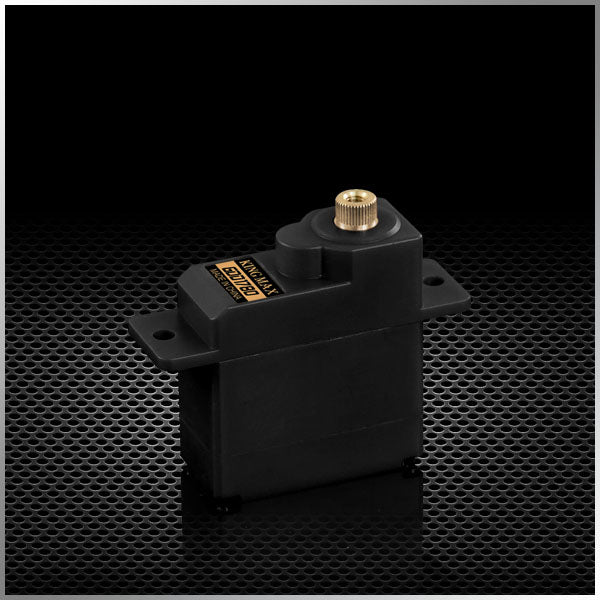

GDD1780--17g 8.0kg.cm torque mini digital servo

FEATURE:

-- High performance,mini digital servo

-- High precision metal gears

-- High quality DC motor

SPECIFICATIONS:

Operating Speed(5.0V):0.11sec/60degrees

Operating Speed(6.0V):0.09sec/60degrees

Operating Speed(7.4V):0.07sec/60degrees

Stall torque(7.4V):8.0kg.cm(111.12oz/in)

Maximum working torque(7.4V):5.2kg.cm(72.22oz/in)

Rated working torque(5.0V):2.9kg.cm(40.28oz/in)

Rated working torque(6.0V):3.6kg.cm(50.00oz/in)

Rated working torque(7.4V):3.9kg.cm(54.17oz/in)

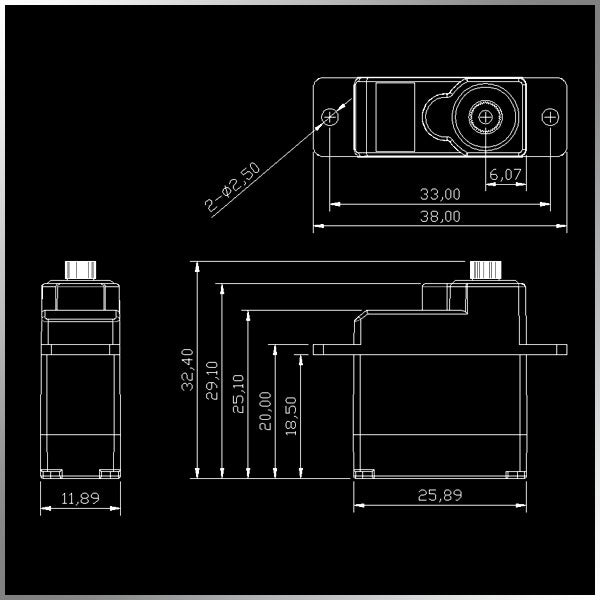

Dimensions:26*12*25mm/1.01X0.46X0.97in

Weight:17g(0.59oz)

Connector Wire Length:JR190mm(7.41in)
