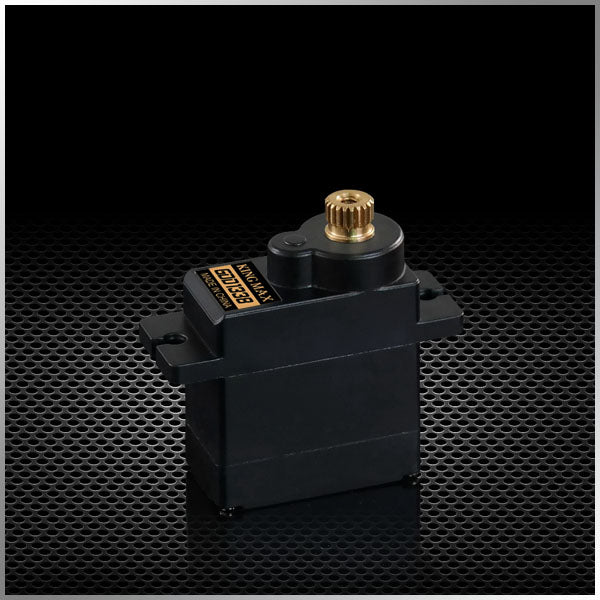

GDD1338--13g 3.8kg.cm torque mini digital servo

FEATURE:

-- High performance,mini digital servo

-- High precision metal gears

-- High quality DC motor

SPECIFICATIONS:

Operating Speed(5.0V):0.11sec/60degrees

Operating Speed(6.0V):0.09sec/60degrees

Stall torque(5.0V):3.8kg.cm(52.78oz/in)

Maximum working torque(5.0V):2.1kg.cm(29.16oz/in)

Rated working torque(5.0V):1.5kg.cm(20.83oz/in)

Rated working torque(6.0V):1.7kg.cm(23.61oz/in)

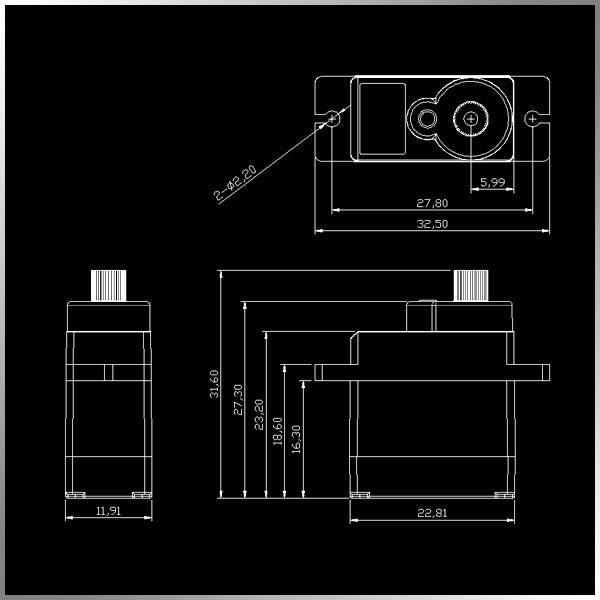

Dimensions:23*12*23.4mm/0.89X0.46X0.91in

Weight:13g(0.45oz)

Connector Wire Length:JR190mm(7.41in)
