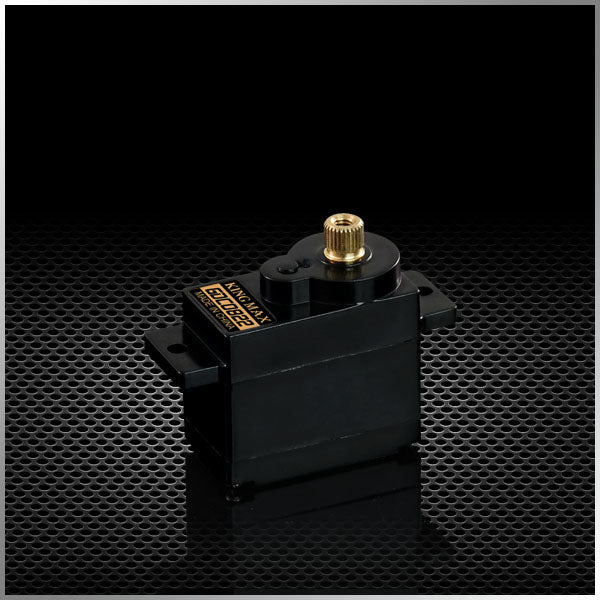

GDC0822--8g 2.2kg.cm torque micro digital servo

FEATURE:

-- High performance,micro digital servo

-- High-precision metal gears

-- High quality coreless motor

SPECIFICATIONS:

Operating Speed(3.5V):0.11sec/60degrees

Operating Speed(5.0V):0.09sec/60degrees

Operating Speed(6.0V):0.07sec/60degrees

Stall torque(5.0V):2.2kg.cm(30.55oz/in)

Maximum working torque(5.0V):1.2kg.cm(16.66oz/in)

Rated working torque(3.5V):0.6kg.cm(8.33oz/in)

Rated working torque(5.0V):0.7kg.cm(9.72oz/in)

Rated working torque(6.0V):0.9kg.cm(12.50oz/in)

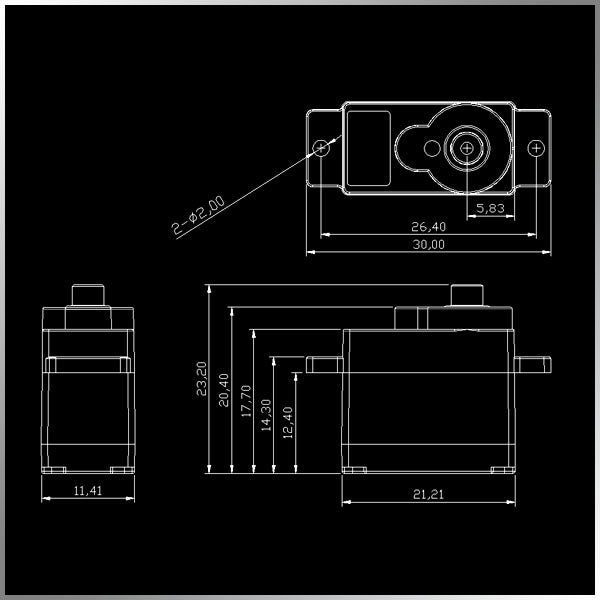

Dimensions:21*11.4*17.7mm/0.81X0.44X0.69in

Weight:8g(0.28oz)

Connector Wire Length:JR190mm(7.41in)
