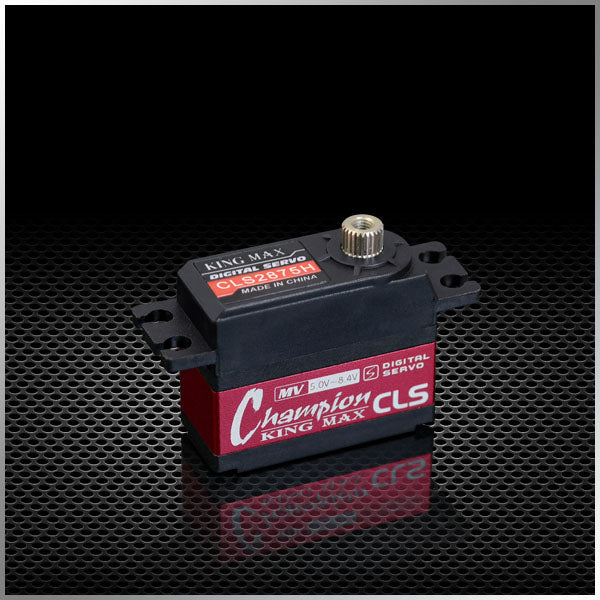

CLS2875H--28g,digital,metal gears mini servo

CLS2875H--28g,digital,metal gears mini servo

Regular price $39.95 CAD
Regular price Sale price $39.95 CAD
Sale Sold out
Shipping calculated at checkout.

- Programmable high performance digital servo
-- High-precision aluminium gears with hard anodizing
-- High quality coreless motor
-- CNC aluminium middle hull
-- Dual ball bearings
-- Ideal for 450-500 class helicopter

Operating Speed (5.0V): 0.12sec/60 degrees
Operating Speed (6.0V): 0.10sec/60 degrees

Operating Speed (7.4V): 0.08sec/60 degrees

Operating Speed (8.4V): 0.07sec/60 degrees

Stall Torque (5.0V): (105.56oz/in)
Stall Torque (6.0V): (116.67oz/in)

Stall Torque (7.4V): (138.90oz/in)

Stall Torque (8.4V): (152.79oz/in)

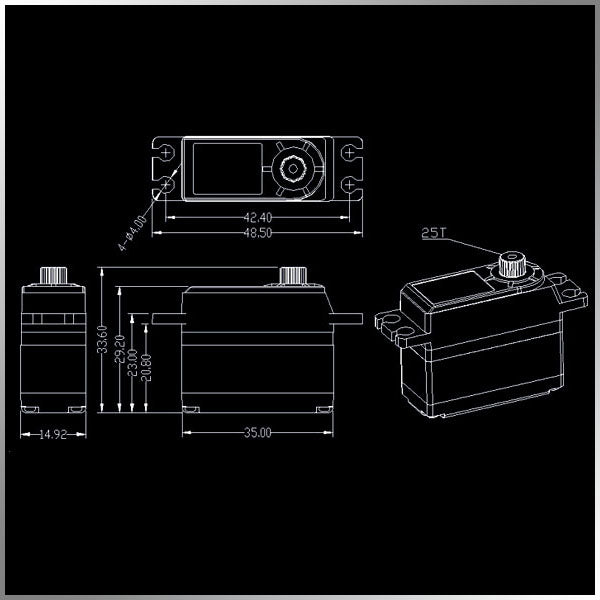

Dimensions: 35X15X29mm /1.38X0.59X1.14 in
Weight: 28g (0.99oz)
Connector Wire Length: JR260mm (10.14in)

Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 80g
Carton box size: 43x26.5x20.5cm 100sets/1CTN
