Low Pass RC

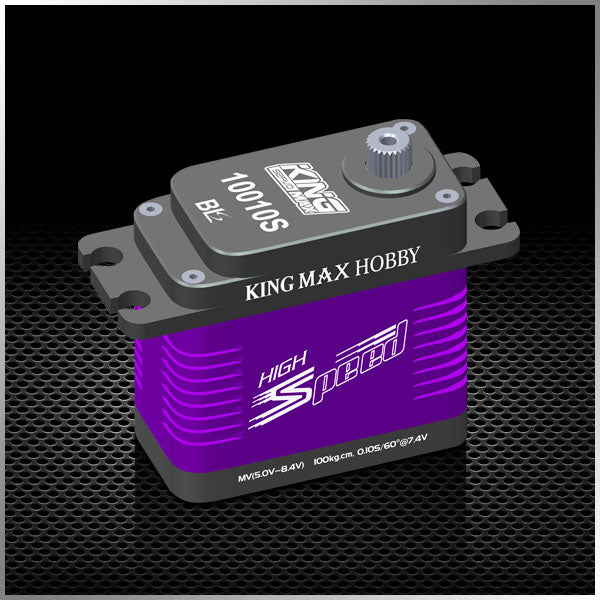

BLS10010S--91g,digital,steel gears mini servo

BLS10010S--91g,digital,steel gears mini servo

Regular price $169.95 CAD
Regular price Sale price $169.95 CAD
Sale Sold out
Shipping calculated at checkout.
Item: BLS10010S
Gear: Steel gear
Spline: Standard 25T
Motor: Brushless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Rated working voltage: DC 7.4V
Working frequency: 1520μs/330hz
Working angle: ±63°@800us-2200us
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃


-- High performance, digital standard servo

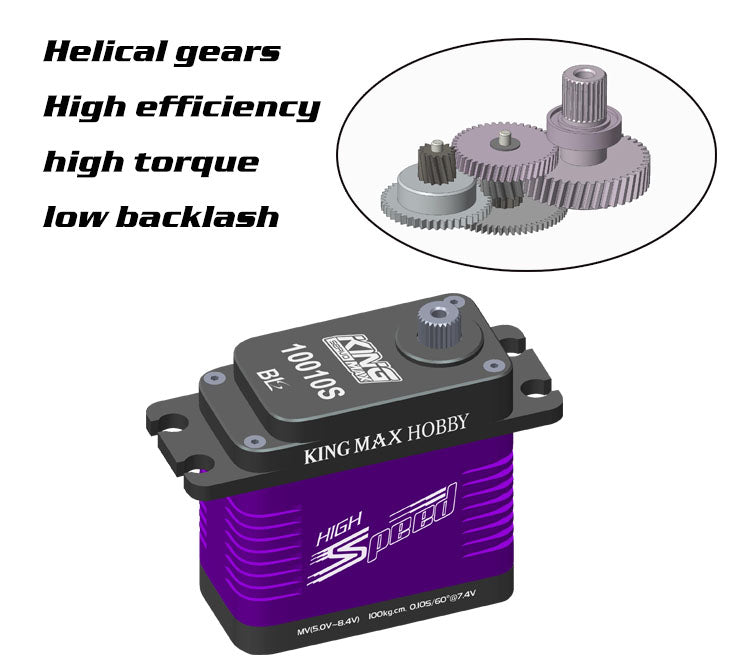

-- High Precision Helical Gears Structure

-- High-precision steel gears

-- Full CNC aluminium hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Waterproof


Dead band: 2μs default

Working frequence:1520μs/330hz

Operating Voltage: DC5.0~8.4V

Operating Speed(5.0V):0.16sec/60 degrees

Operating Speed(6.0V):0.13sec/60 degrees

Operating Speed(7.4V):0.10sec/60 degrees

Operating Speed(8.4V):0.09sec/60 degrees

Stall Torque(5.0V)

Stall Torque(6.0V)

Stall Torque(7.4V)

Stall Torque(8.4V)

Dimensions:40X20.5X38.3mm/1.56X0.79X1.49 in


Connector Wire Length:320mm(12.4in)

Packing Detail:

Transparent plastic box size: 83.5mmx63.5mmx37.5mm  weight: 143g

Carton box  size: 43x26.5x20.5cm  100sets/1CTN  Gross weight:14.75kg

Optional Accessories:

BLS10010S-001:Offered accessories

BLS10010S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
